Biobase China 50L~120liters Laboratory Steam Sterilization Vertical Handwheel Autoclave Bkq-B50/70/100/120II Vertical Autoclave
Biobase China 50L~120liters Laboratory Steam Sterilization Vertical Handwheel Autoclave Bkq-B50/70/100/120II Vertical Autoclave
Biobase China 50L~120liters Laboratory Steam Sterilization Vertical Handwheel Autoclave Bkq-B50/70/100/120II Vertical Autoclave
Biobase China 50L~120liters Laboratory Steam Sterilization Vertical Handwheel Autoclave Bkq-B50/70/100/120II Vertical Autoclave
Biobase China 50L~120liters Laboratory Steam Sterilization Vertical Handwheel Autoclave Bkq-B50/70/100/120II Vertical Autoclave
1 / 5
Biobase China 50L~120liters Laboratory Steam Sterilization Vertical Handwheel Autoclave Bkq-B50/70/100/120II Vertical Autoclave
Biobase China 50L~120liters Laboratory Steam Sterilization Vertical Handwheel Autoclave Bkq-B50/70/100/120II Vertical Autoclave
Biobase China 50L~120liters Laboratory Steam Sterilization Vertical Handwheel Autoclave Bkq-B50/70/100/120II Vertical Autoclave
Biobase China 50L~120liters Laboratory Steam Sterilization Vertical Handwheel Autoclave Bkq-B50/70/100/120II Vertical Autoclave
Biobase China 50L~120liters Laboratory Steam Sterilization Vertical Handwheel Autoclave Bkq-B50/70/100/120II Vertical Autoclave

Biobase China 50L~120liters Laboratory Steam Sterilization Vertical Handwheel Autoclave Bkq-B50/70/100/120II Vertical Autoclave

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
BKQ-B50/70/100/120II
Electric Tension
220V/110V
LCD Display
With LCD Display
Material
Stainless Steel
Capacity
50L/75L/100L/120L
Chamber Material
S30408
Max Designed Temp.
134℃
Working Temp.
105-136℃
Temp. Accuracy
0.1℃
Power Consumption
4.4kw
Transport Package
Wooden Case
Product Description
Laboratory Steam Sterilization
50L~120L Laboratory Steam Sterilization Vertical Handwheel Autoclave

Application: This vertical autoclave is especially designed for liquid and food sterilization in laboratory, pharmaceutical and food factory.

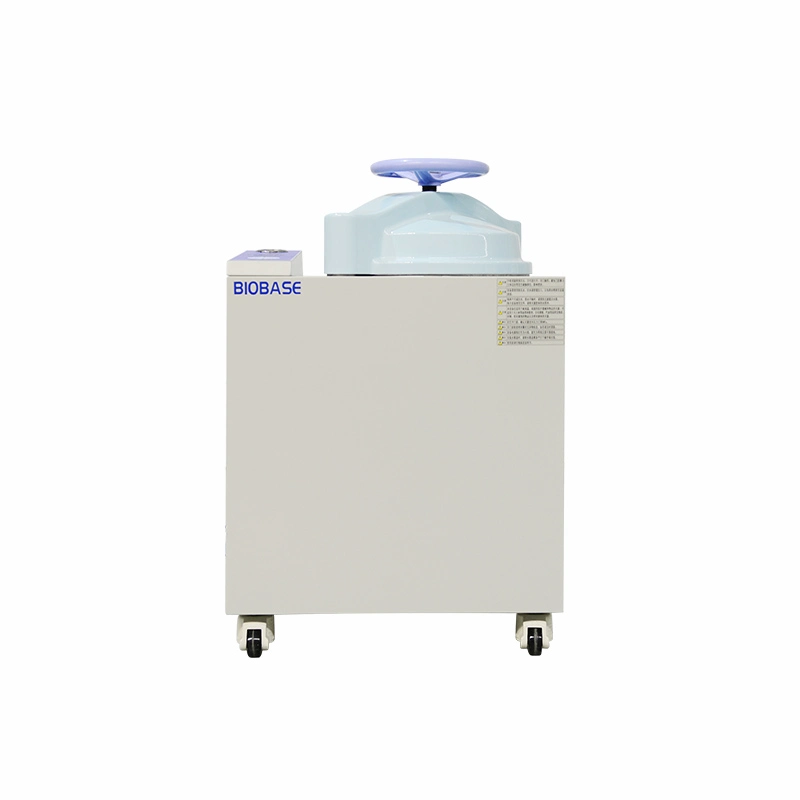

Vertical Autoclave Overview

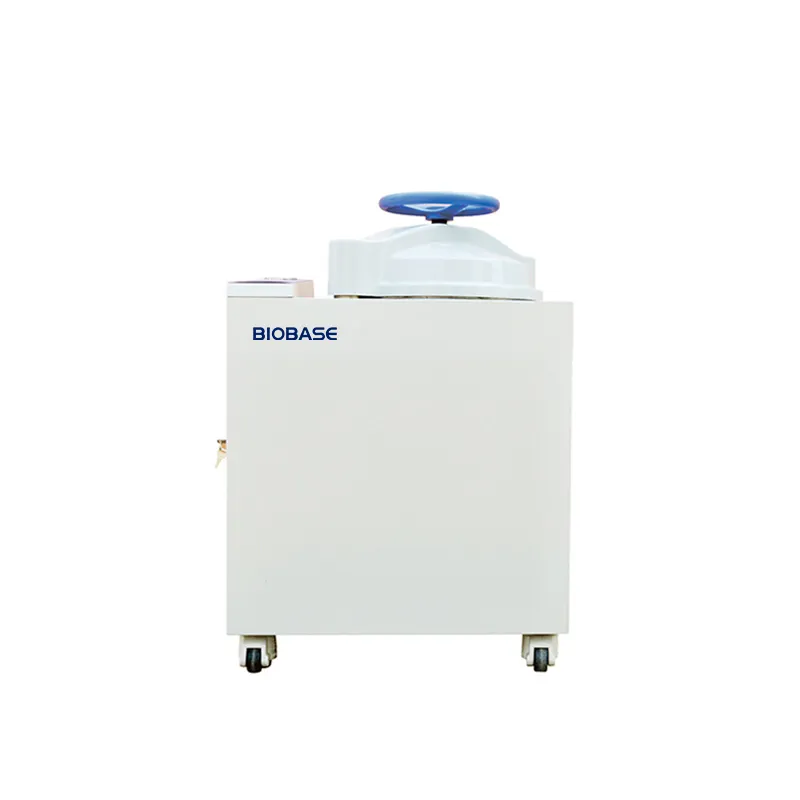

Sterilization Unit

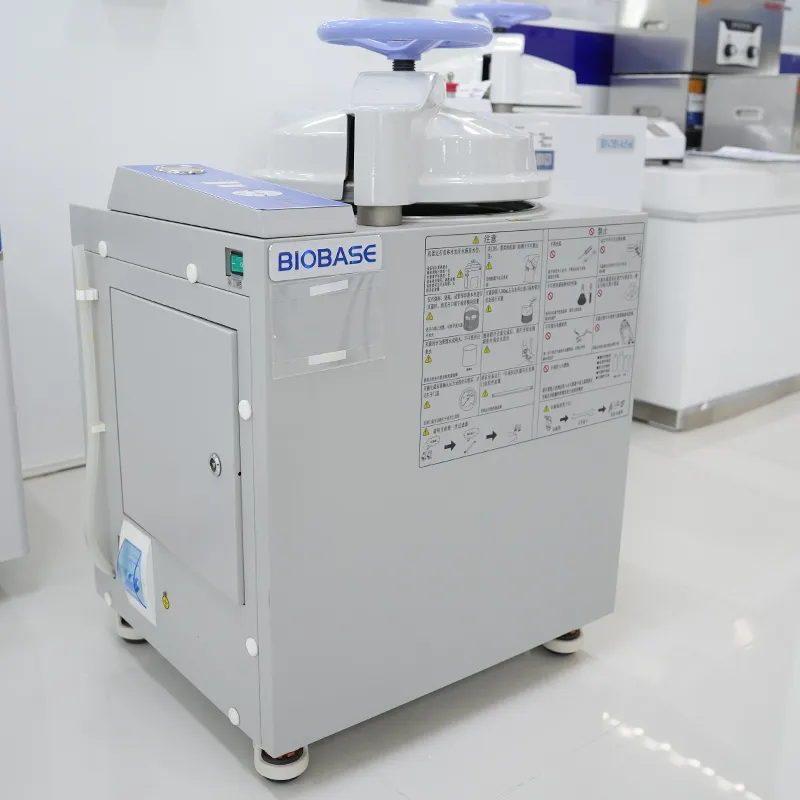

Handwheel Detail

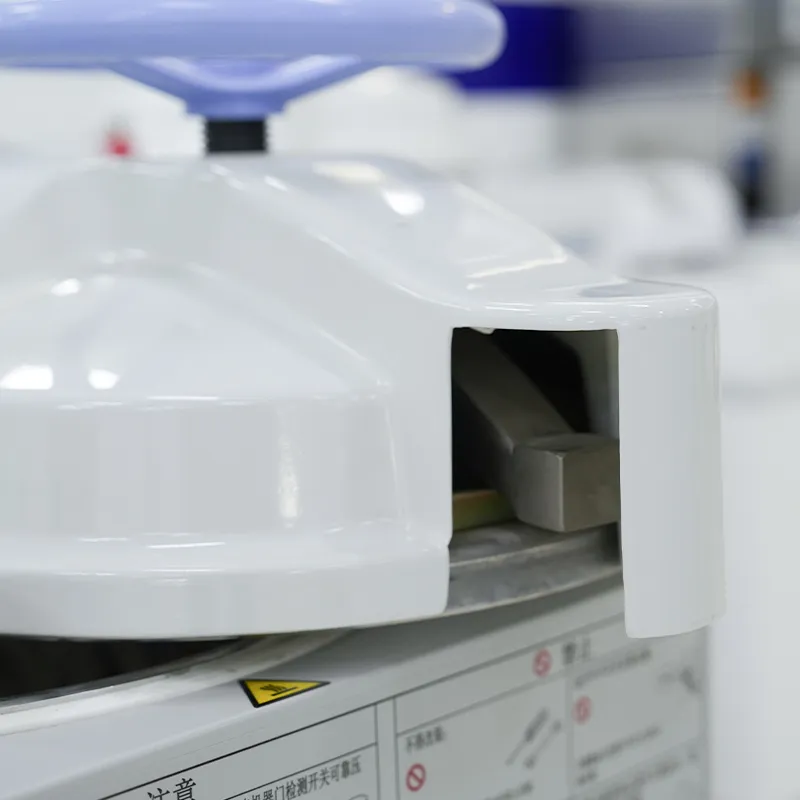

Chamber Detail

Key Features

  • Water inlet filter to keep high water quality (except BKQ-B150/200II).
  • Optional printer for recording sterilization data.
  • LED screen displays all steps of full process as well as error codes.
  • Drying function (except BKQ-B150/200II).
  • Independent quick service window, easy for repairing and maintenance.
  • Automatic selecting quick or low exhaust to avoid sterilization liquid overflowing.
  • Complete process of filling water, dynamic pulse exhaust, heating, sterilizing and draining runs automatically.
Technical Parameters
Model BKQ-B50II BKQ-B75II
Capacity 50L 75L
Chamber Size(mm) φ386*514 φ386*695
Chamber Material S30408 Stainless Steel
Max Designed Pressure 0.28MPa
Max Designed Temp 134ºC
Working Pressure 0.23MPa
Working Temp. 105ºC-136ºC
Temp. Accuracy 0.1ºC
Timing Range 0~999min
Power Consumption 4.4KW
Power Supply AC110/220V±10%, 50/60Hz
About the Group

Founded in 1999, having over 2000 employees, the Group is a new high-tech enterprise focusing on development, production and management of scientific equipment, In Vitro Diagnosis (IVD) instrument and reagent.

Main products include: Biosafety Cabinet (Class I, II, III), Laminar Flow Cabinet, Fume Hood, PCR Cabinet, Air Purifier, Pass Box, Air Shower, Autoclave, Incubator, Cold Chain System, Drying Oven, Water Bath etc.

Production Facility
Packaging & Shipping

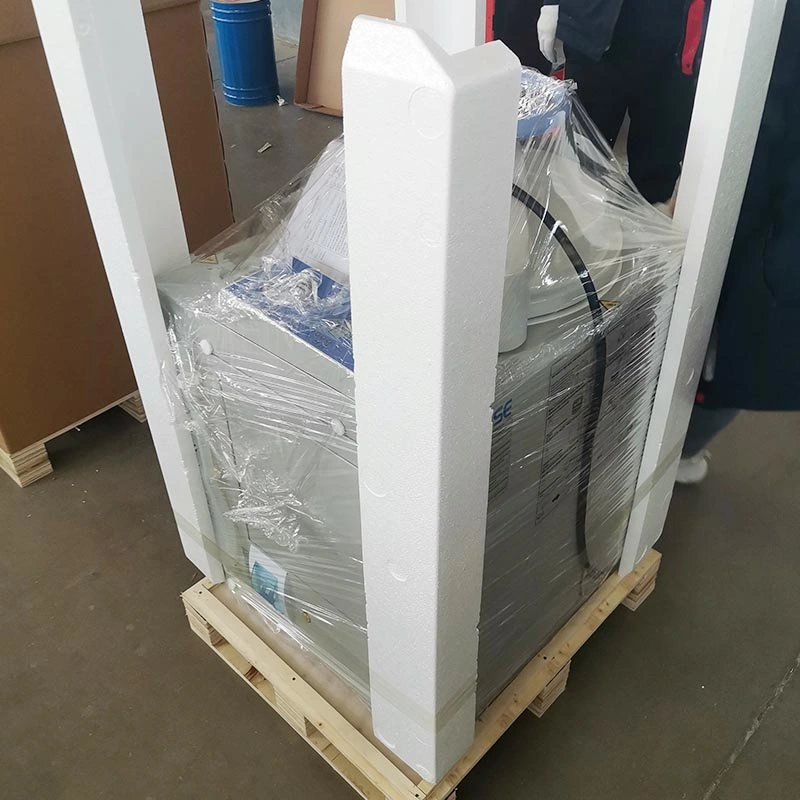

Packaging Details
Exhibitions & After-sales Service
Exhibition View 1
Service and Support
Global Support
Global Network
Frequently Asked Questions
Q1: What materials are sterilized in this vertical autoclave? A: This autoclave is specifically designed for the sterilization of liquids and food products in laboratory, pharmaceutical, and food factory environments.
Q2: What is the maximum temperature and pressure for this unit? A: The maximum designed temperature is 134°C with a maximum designed pressure of 0.28MPa. The standard working temperature range is 105°C to 136°C.
Q3: Is the sterilization process automated? A: Yes, the full process including water filling, dynamic pulse exhaust, heating, sterilizing, and draining runs automatically.
Q4: Does it come with a drying function? A: Yes, the BKQ-BII series models (50L to 120L) include a drying function for sterilized items.
Q5: What safety features are included? A: The unit features an LED screen for error code display, automatic exhaust selection to prevent overflow, and an independent service window for safe maintenance.
Q6: What are the power requirements? A: It supports both AC110V and 220V (±10%) at 50/60Hz, making it compatible with most international power grids.
