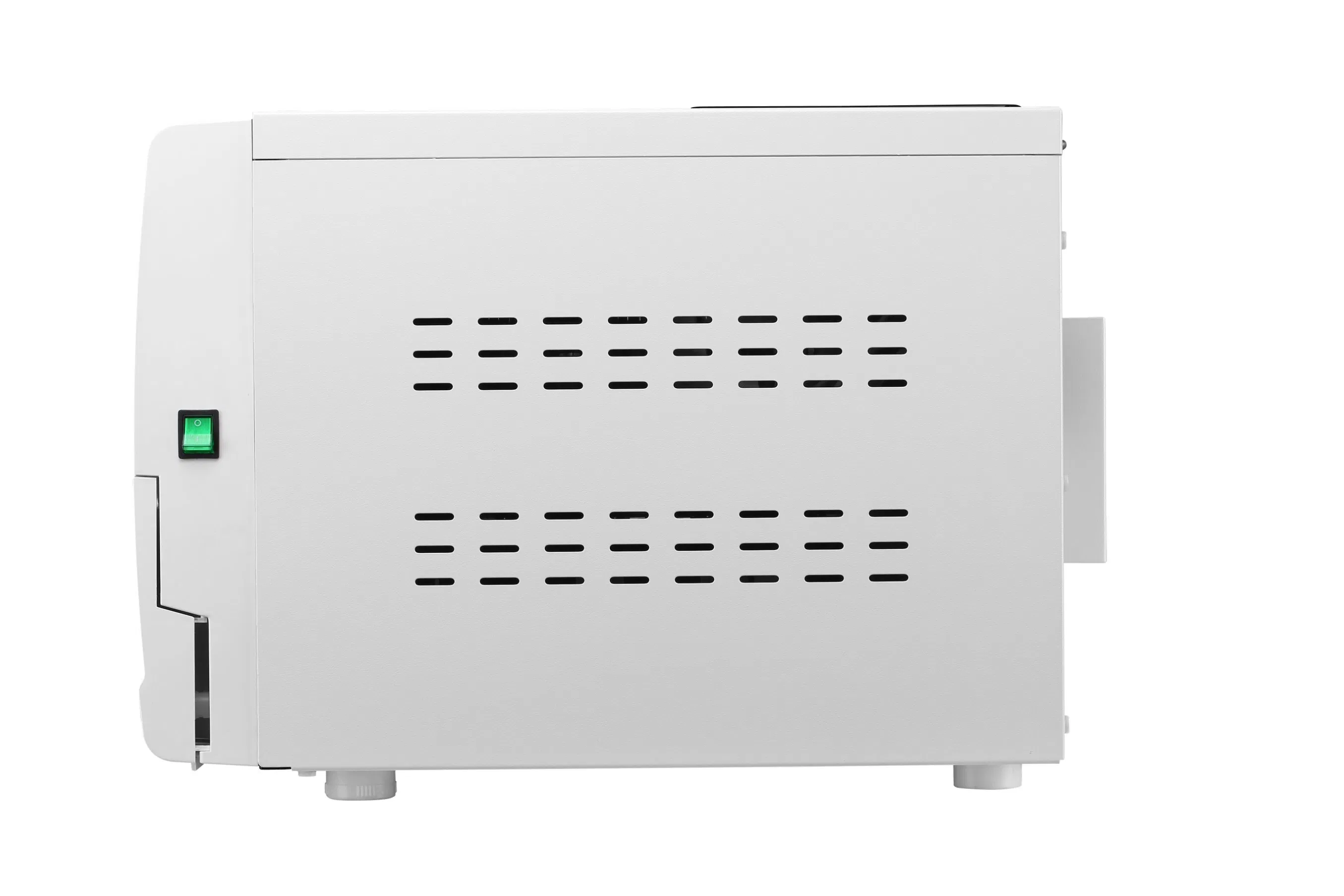

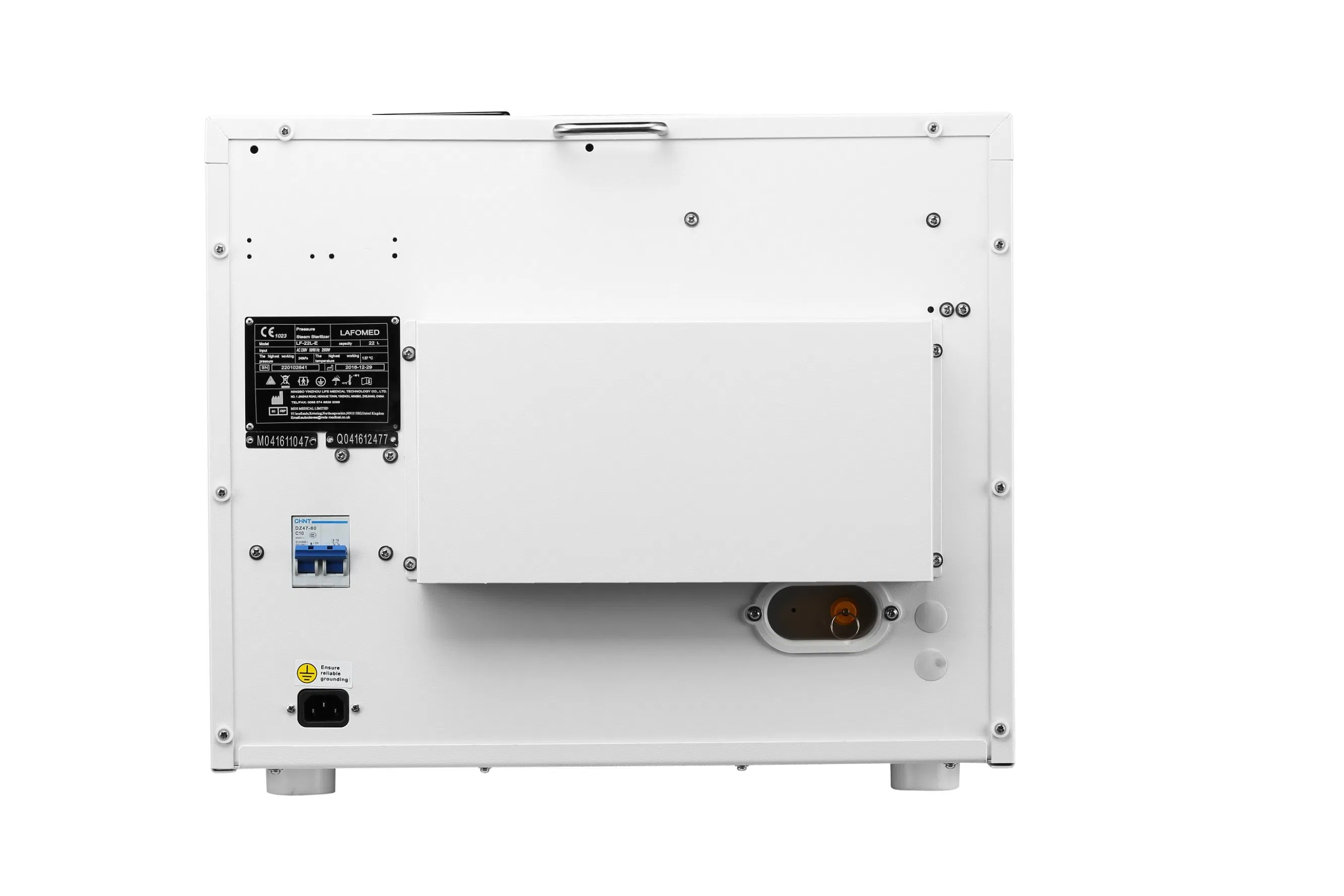

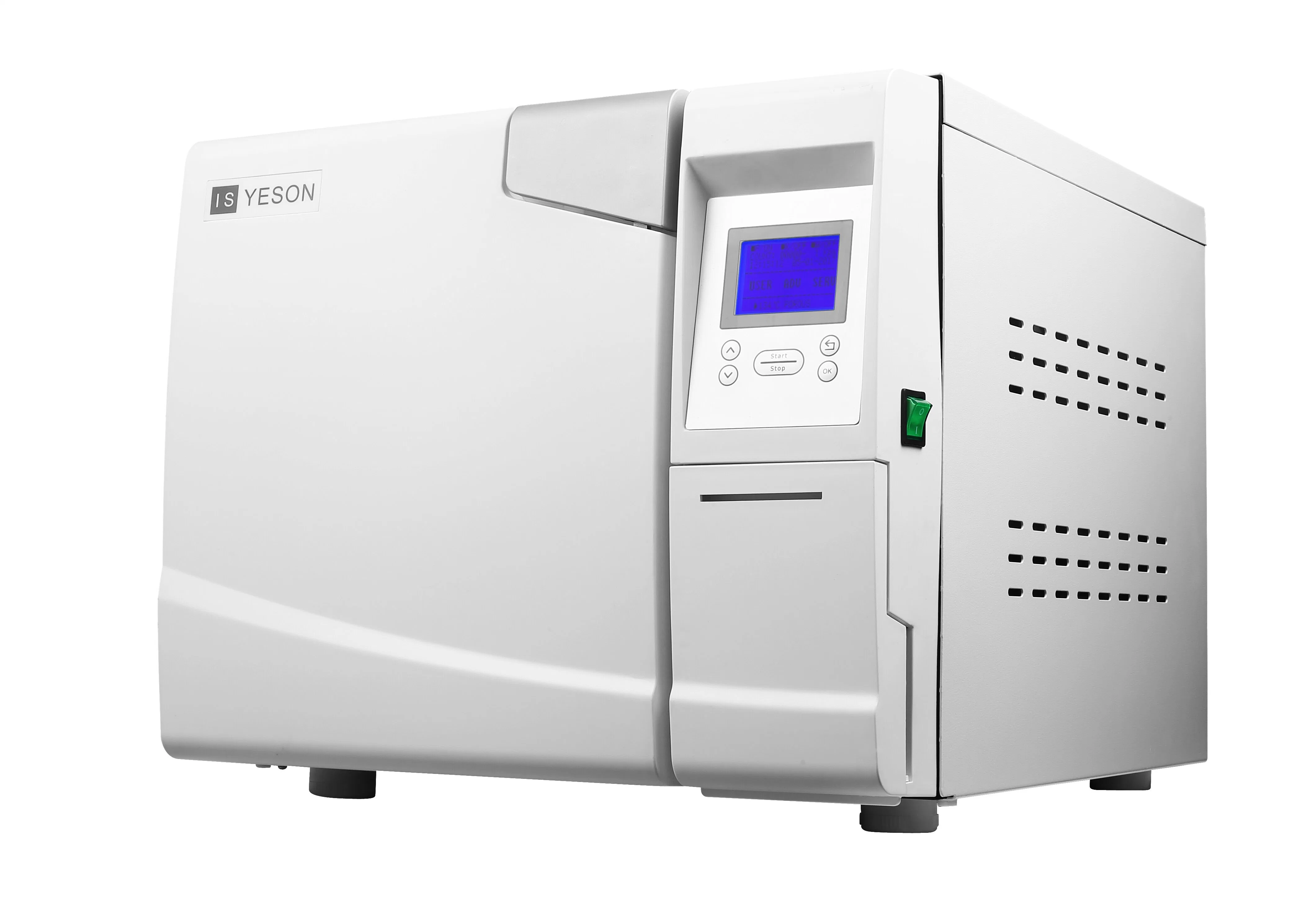

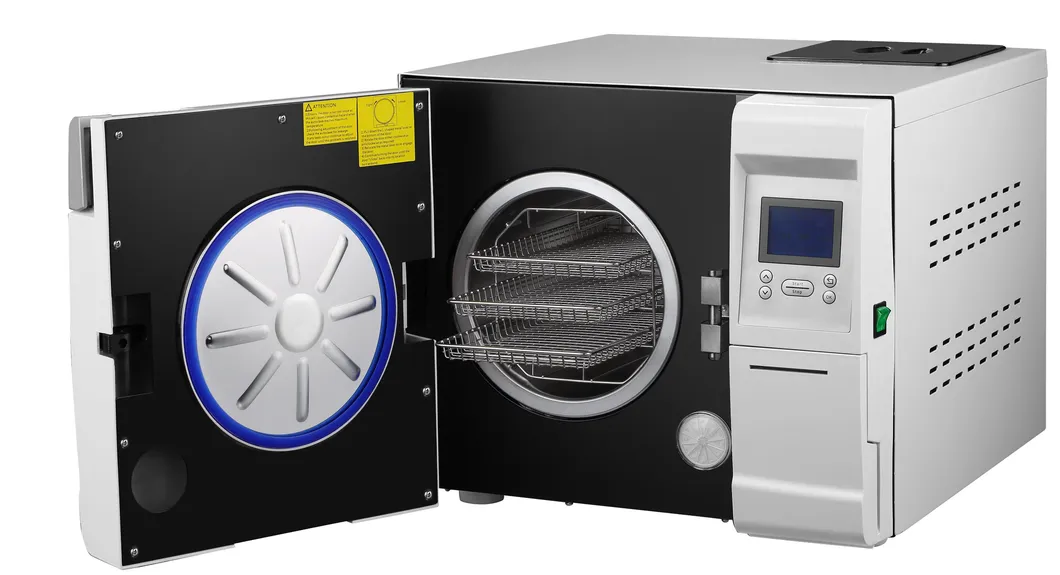

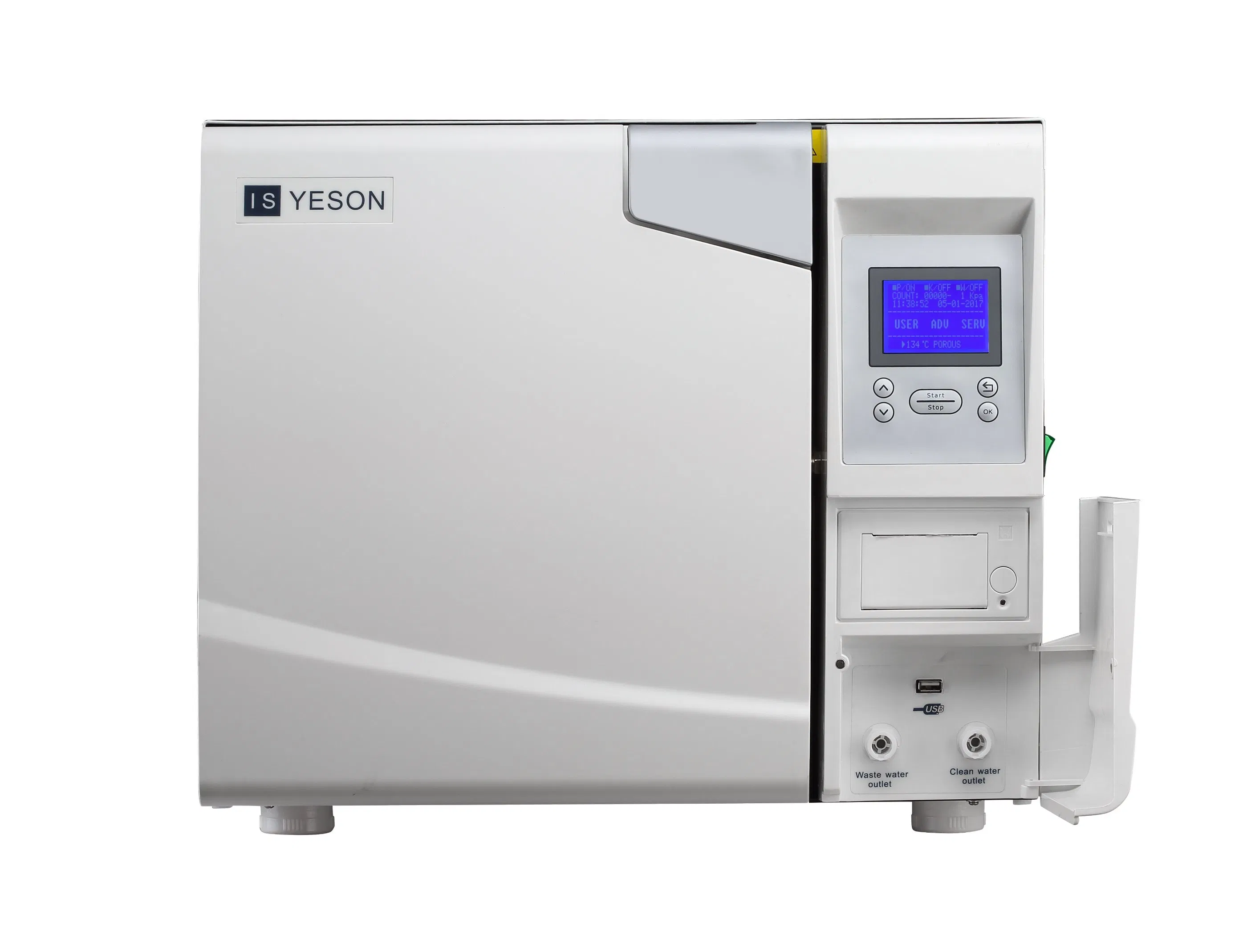

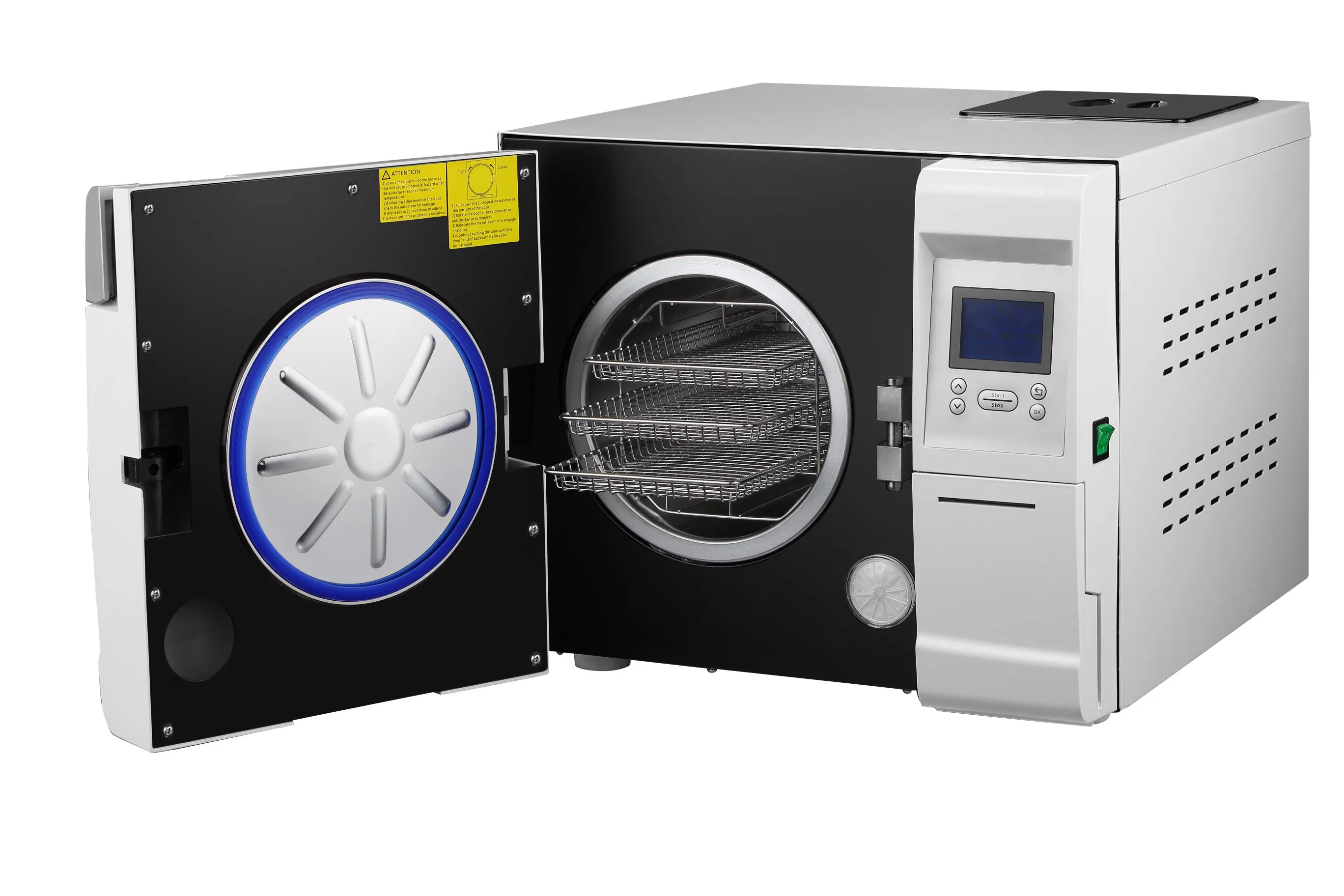

23L Class B Tabletop Steam Autoclave for Sterilization with LCD

1 / 5

23L Class B Tabletop Steam Autoclave for Sterilization with LCD

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.YS-23L-pro-E

Electric Tension230V

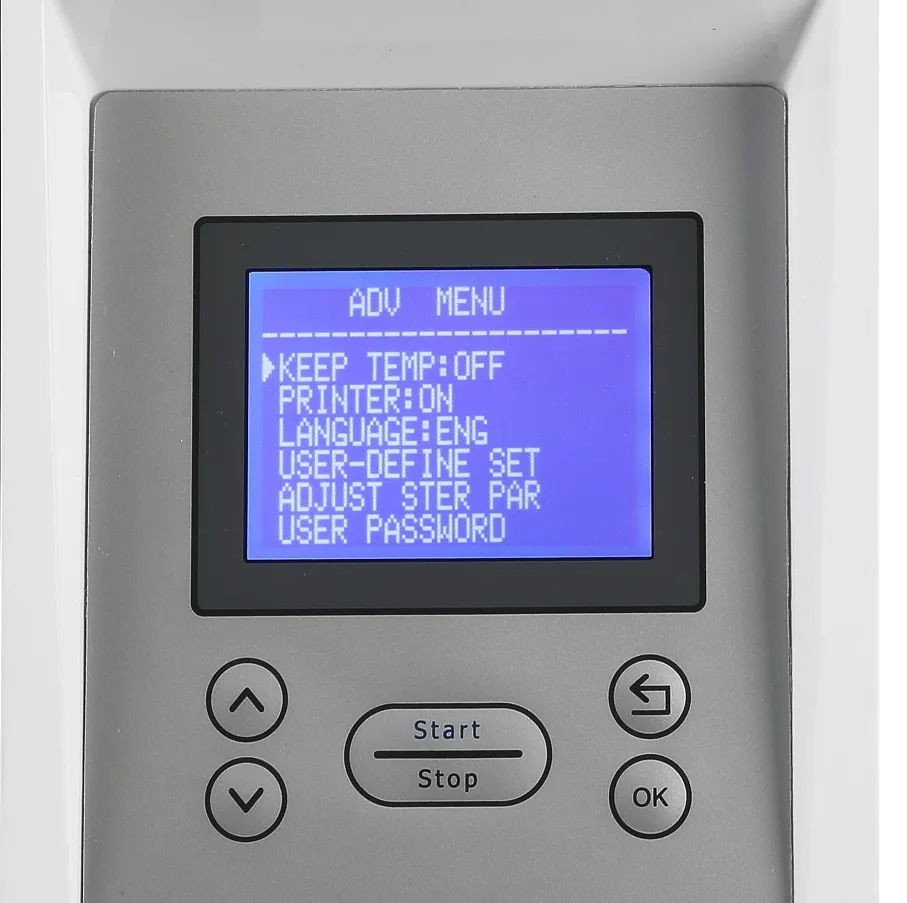

LCD DisplayWith LCD Display

MaterialStainless Steel

Power Supply230V/50Hz/2500W

Chamber Sizeø250X450mm

Clean Water Tank4.5L

Waste Water Tank4.0L

Net Weight55kg

Installation Size600mm

Capacity23L Class B

HS Code84192000

★

Key Features

1) Automatic Systems

Automatic water filling & drainage to reduce workload.

2) Post Drying Process

Ensures the instruments are completely dry after sterilization.

3) Separated Tanks

Clean water and waste water tanks are completely separated for hygiene.

4) Safety Protection

Equipped with Electronic + Mechanical locker system and short circuit protection.

5) Quality Assessment

Includes sterilization effectiveness assessment and optional water quality detection.

6) Data Management

Built-in Printer + USB port for sterilization information recording.

⚙

Technical Data

Description	Specification
Power supply	230V/50Hz/2500W
Clean water tank	4.5L
Waste water tank	4.0L
Chamber size	ø250X450mm
Capacity	23L
Product size (WDH)	500X655X430mm
Material of chamber	Stainless steel 304

✓

Sterilization Parameters

Process	Vacuum Times	Sterilizing Time	Temperature	Pressure	Dry Time
121ºC/SOLID	1 *	20min *	121ºC	110kPa	3 *
121ºC/POROUS	3 *	20min *	121ºC	110kPa	7 *
134ºC/SOLID	1 *	4min *	134ºC	210kPa	3 *
134ºC/POROUS	3 *	4min *	134ºC	210kPa	7 *
B-D TEST	3	4min	134ºC	210kPa	7
VACUUM TEST	-	-	-	-80kPa	-
PRIONEN	3	19min	135ºC	210kPa	10

* Note: Data marked with "*" can be adjusted by the user.

Advanced Sterilization Solutions

Specializing in the R&D, production, and marketing of medical sterilization products. Our tabletop autoclaves range from 3L to 45L, designed for efficiency and safety. We are committed to providing world-class sterilization solutions and creating efficient disinfection spaces for medical professionals worldwide.

Frequently Asked Questions

Q: What is the sterilization class of this autoclave? A: This is a Class B tabletop steam autoclave, which complies with high-level European standards for medical sterilization.

Q: Does it require manual water filling? A: No, it features automatic water filling and drainage systems to significantly reduce the workload for medical staff.

Q: What safety mechanisms are included? A: It is equipped with a dual Electronic and Mechanical locker system, short circuit protection, and an ultra-high temperature alarm.

Q: Can I track the sterilization cycles? A: Yes, the unit includes both a built-in printer and a USB port for recording and printing all sterilization information.

Q: What is the chamber made of? A: The chamber is constructed from high-quality Stainless Steel 304, ensuring durability and corrosion resistance.

Q: Does it have pre-set programs for different instruments? A: Yes, it includes specialized programs for solid, porous, and hollow instruments, as well as test cycles like the B-D test and Vacuum test.
