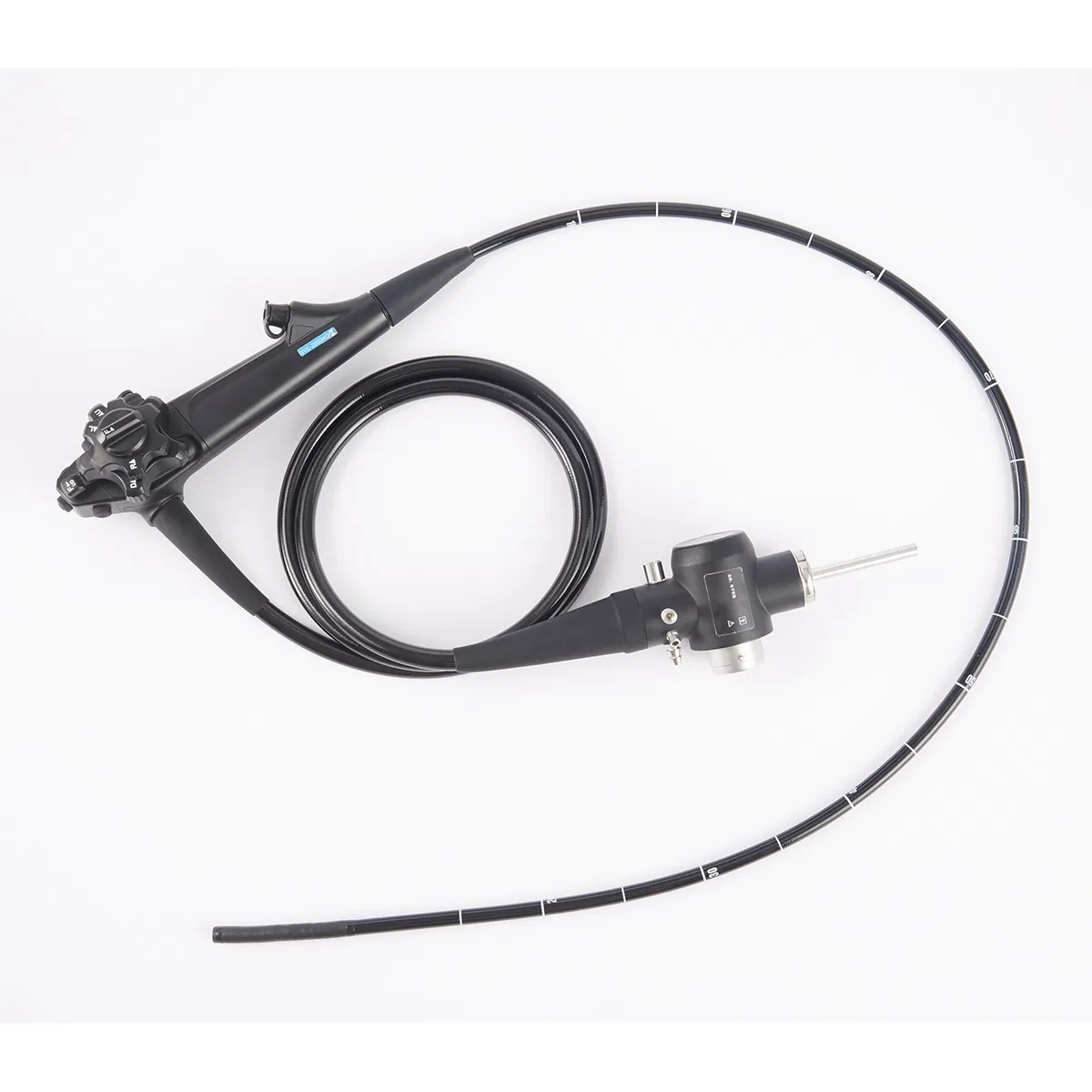

Latest Video Endoscopes System Cold Light Source Awb Medical Ent Surgical Instruments

Customization: Available
Classification: Biochemical Apparatus
Type: Electronic Endoscope System

Product Description

📋

Overview - Basic Info

Model NO. MSLCYN06
Certification CE, ISO13485
Group All
Transport Package Carton
Production Capacity 1000sets/Month
🔬

Product Description

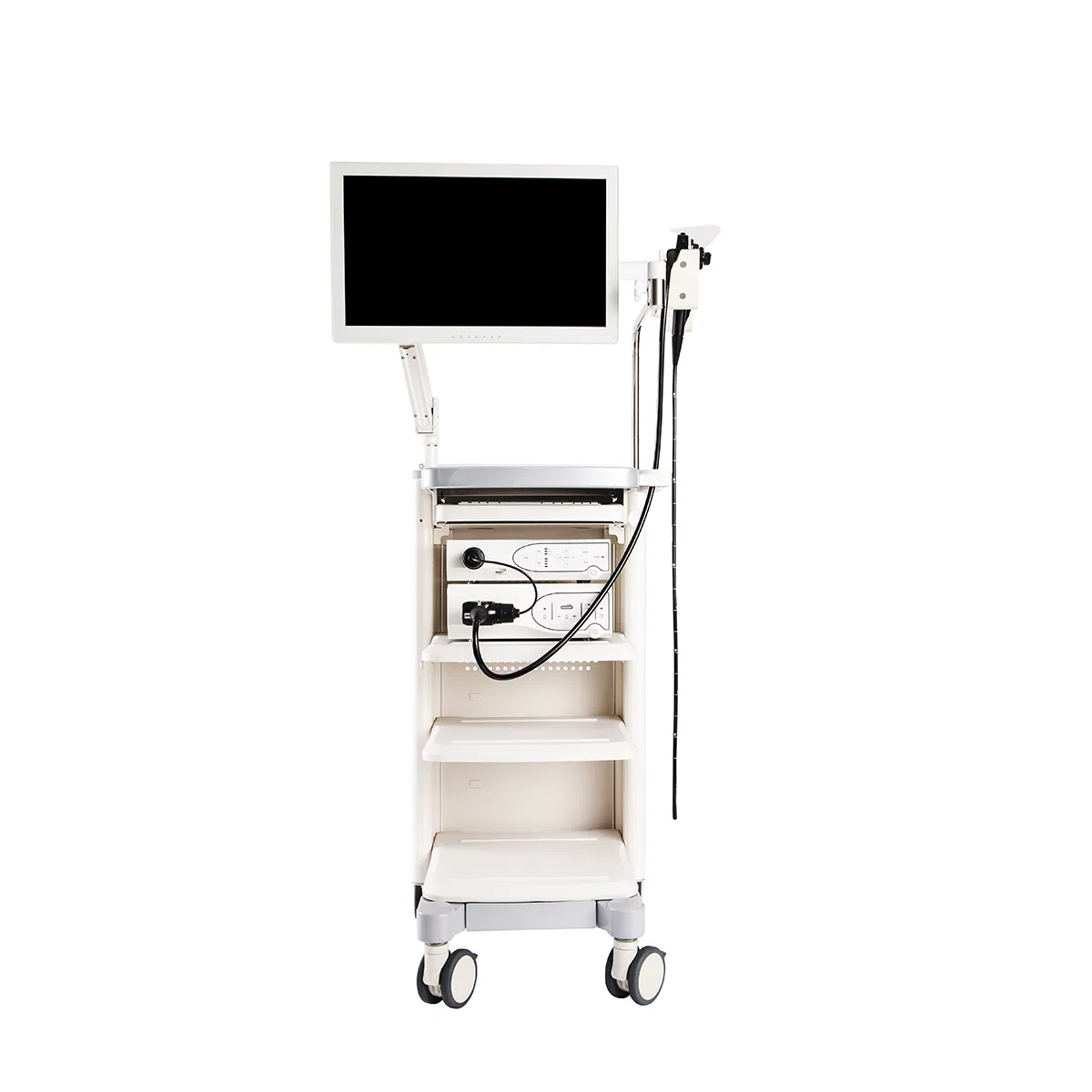

Video Endoscopes System

Outstanding Performance

1
High-quality Clear Image:

The MSLCYN06 Series is equipped with the most advanced CMOS technology and provides outstanding high-definition images with one-megapixel resolution. The upgraded 26-inch display screen brings a more comfortable field of vision for doctors in diagnosis.

2

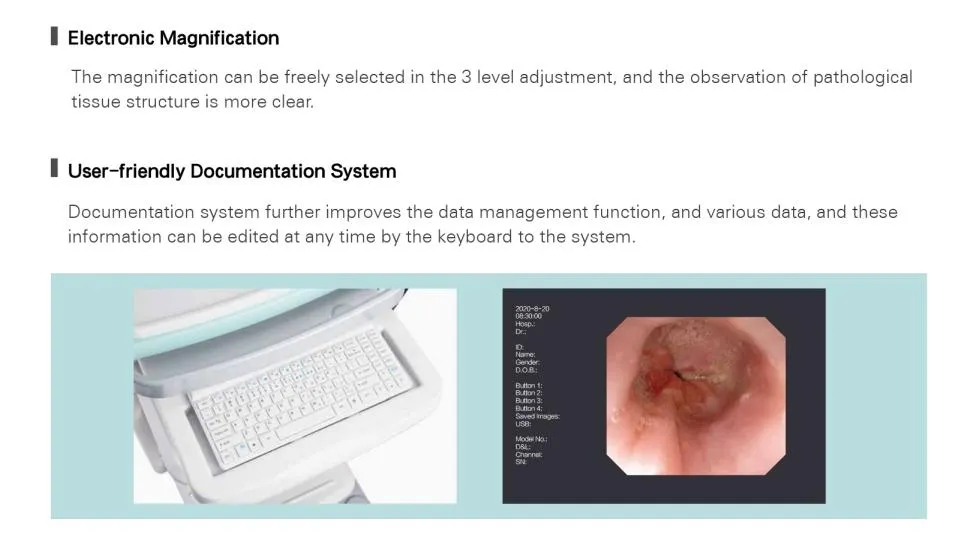

User-friendly Documentation System:

Further improves data management function. Various data can be displayed on the monitor and edited at any time by connecting the keyboard to the system.

3
Scope ID and Standby Function:

Endoscope ID can be quickly identified and displayed. The "Stand" button allows quick replacement of endoscopes without shutting down the equipment, improving efficiency.

4

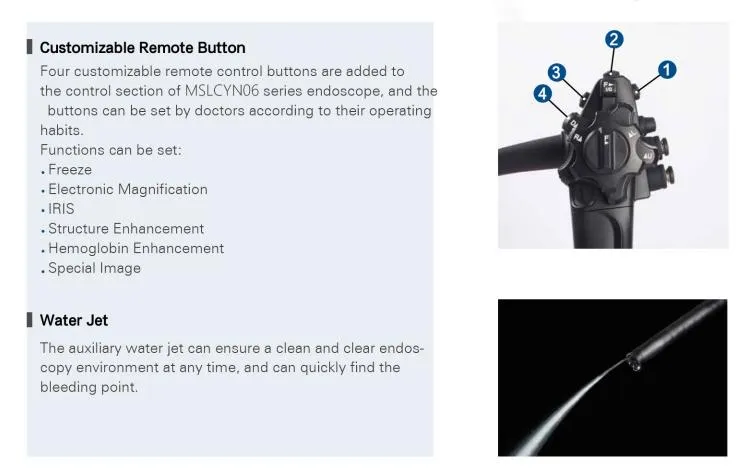

Customizable Remote Button:

Four customizable remote control buttons are added to the Control section, which can be set by doctors according to their operating habits.

5

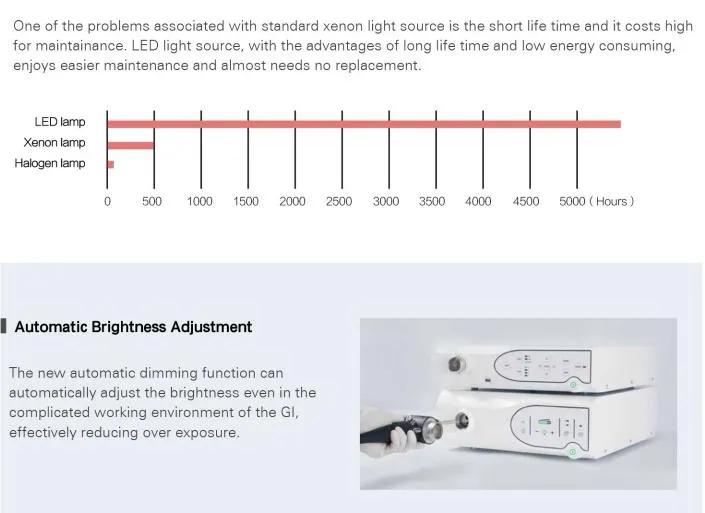

Automatic Brightness Adjustment:

The new automatic dimming function adjusts brightness even in complicated environments, effectively reducing overexposure.

6
Water Jet:

The auxiliary water jet ensures a clean and clear endoscopy environment and helps quickly find bleeding points.

Detailed Performance

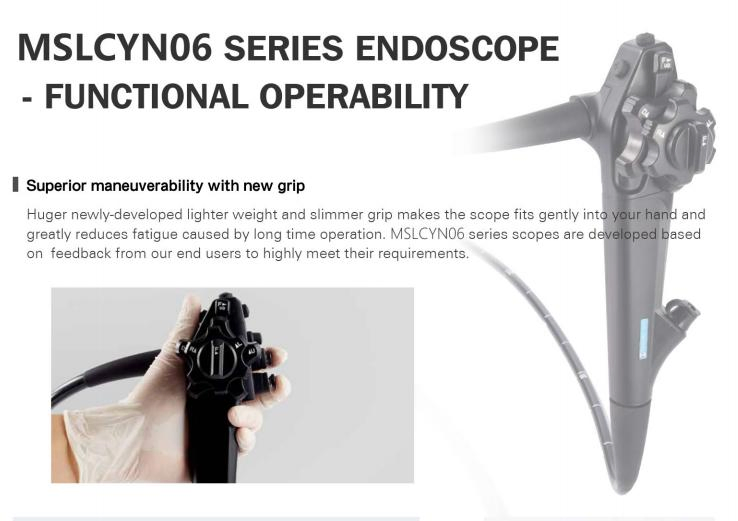

Control Section
🖼️

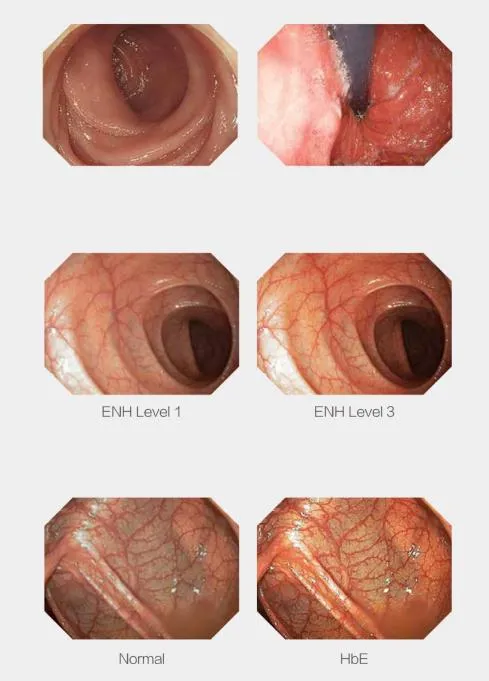

HD Imaging Technology

HD Image: Presents clear and sharp images of mucous membranes, blood vessels, and tiny bleeding points using state-of-the-art CMOS technology.

Outline & Structure Enhancement: Provides a 4-level adjustable mode to show subtle tissue texture and color changes.

Hemoglobin Enhancement: Highlights heme in blood to show the distribution of pathological tissues clearly.

Imaging 1

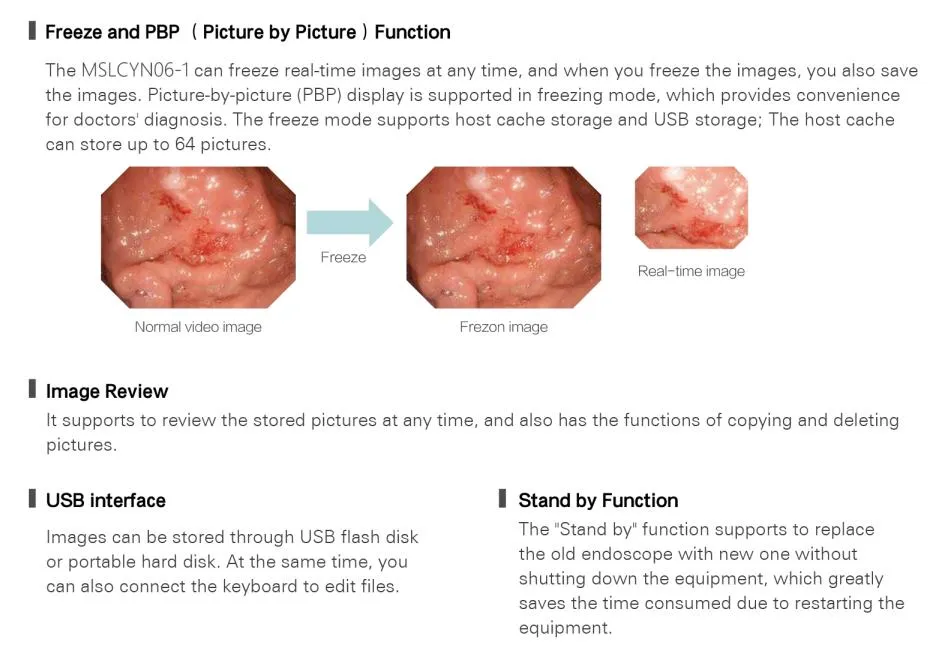

Imaging 2
Imaging 3
Imaging 4
Imaging 5
⚙️

Product Parameters

1. Model GVEHS
Field of view: 145° | Depth of view: 3-100mm
Bending capability: UP/DOWN 210°/90°, R/L 100°/100°
Distal end/Insertion tube diameter: 8.3mm | Channel: 2.2mm | Working length: 1050mm

2. Model GVEHX
Field of view: 145° | Depth of view: 3-100mm
Bending capability: UP/DOWN 210°/90°, R/L 100°/100°
Distal end/Insertion tube diameter: 9.2mm | Channel: 2.8mm | Working length: 1050mm

3. Model GVEHQ
Field of view: 145° | Depth of view: 3-100mm
Bending capability: UP/DOWN 210°/90°, R/L 100°/100°
Distal end/Insertion tube diameter: 9.6mm | Channel: 2.8mm | Working length: 1050mm

4. Model GVEHT
Field of view: 145° | Depth of view: 3-100mm
Bending capability: UP/DOWN 210°/90°, R/L 100°/100°
Distal end/Insertion tube diameter: 9.8mm | Channel: 3.2mm | Working length: 1050mm

📜

Certifications & Profile

Certifications
Gallery 1
Gallery 2
🔗

Related Products

Related Medical Instruments

Frequently Asked Questions

Q1: What imaging technology is used in the MSLCYN06 series? A: The series utilizes advanced CMOS technology to provide high-definition images with one-megapixel resolution.
Q2: How does the standby function benefit the doctor? A: The "Stand" button allows for the quick replacement of endoscopes without having to shut down the entire system, greatly increasing surgical efficiency.
Q3: Are the buttons on the endoscope customizable? A: Yes, there are four customizable remote control buttons that doctors can set according to their specific operating habits.
Q4: Does the system include an automatic brightness feature? A: Yes, the automatic dimming function adjusts brightness to prevent overexposure in complicated working environments.
Q5: What is the purpose of the Water Jet function? A: The auxiliary water jet ensures a clear endoscopy field by washing away debris and helping to identify bleeding points quickly.
Q6: What is Hemoglobin Enhancement? A: It is a function that highlights the heme in blood, significantly improving the visibility of blood vessel distribution and pathological tissues.
