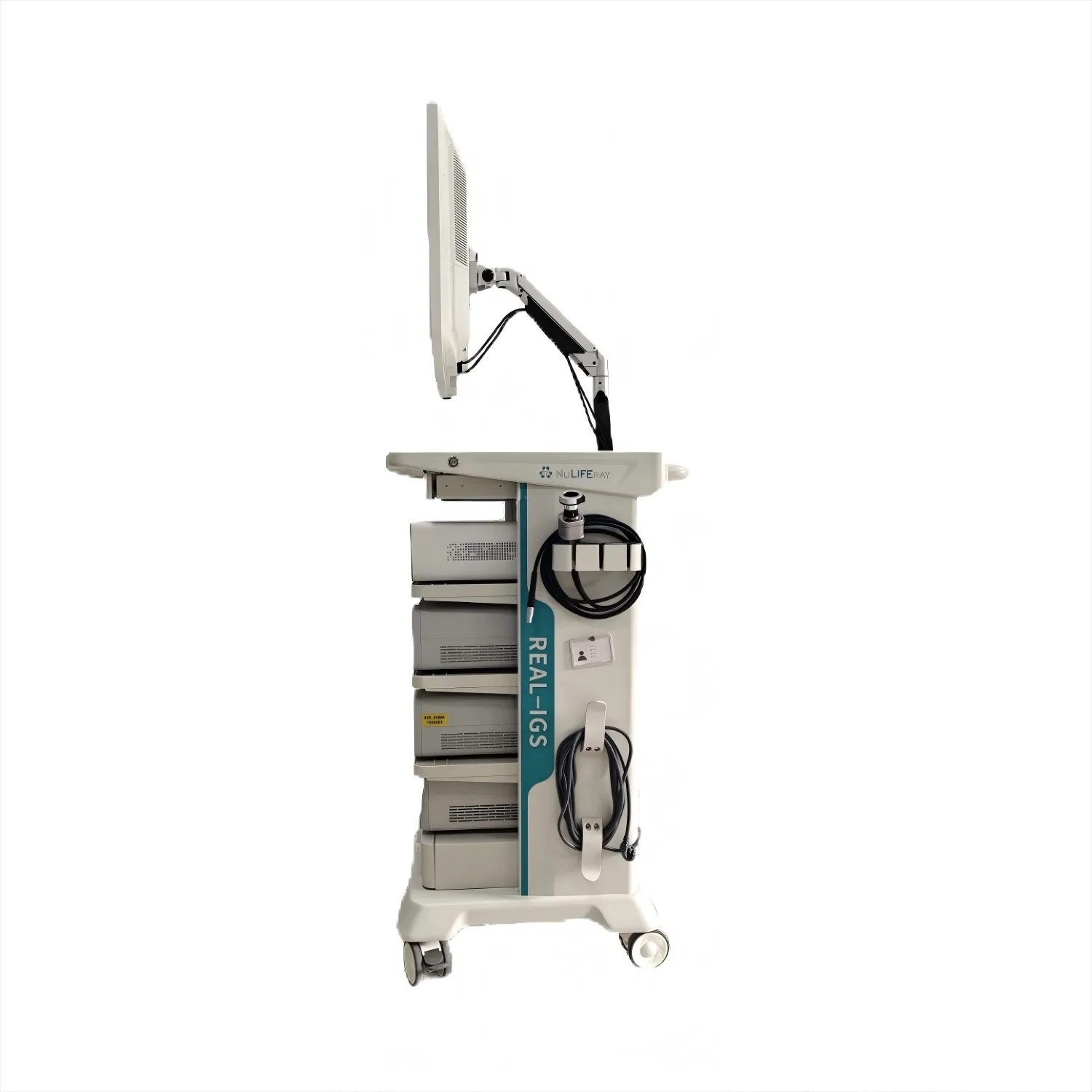

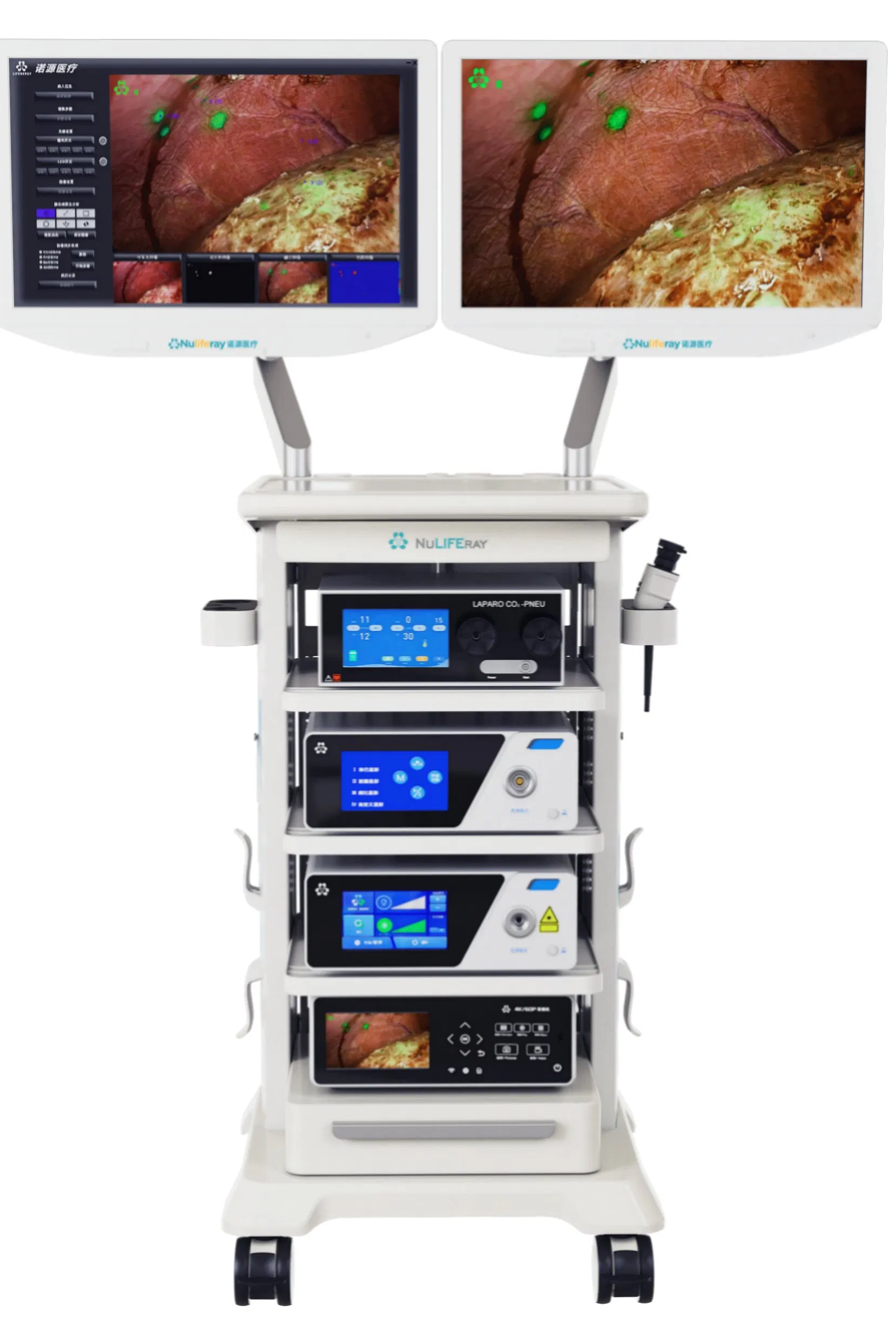

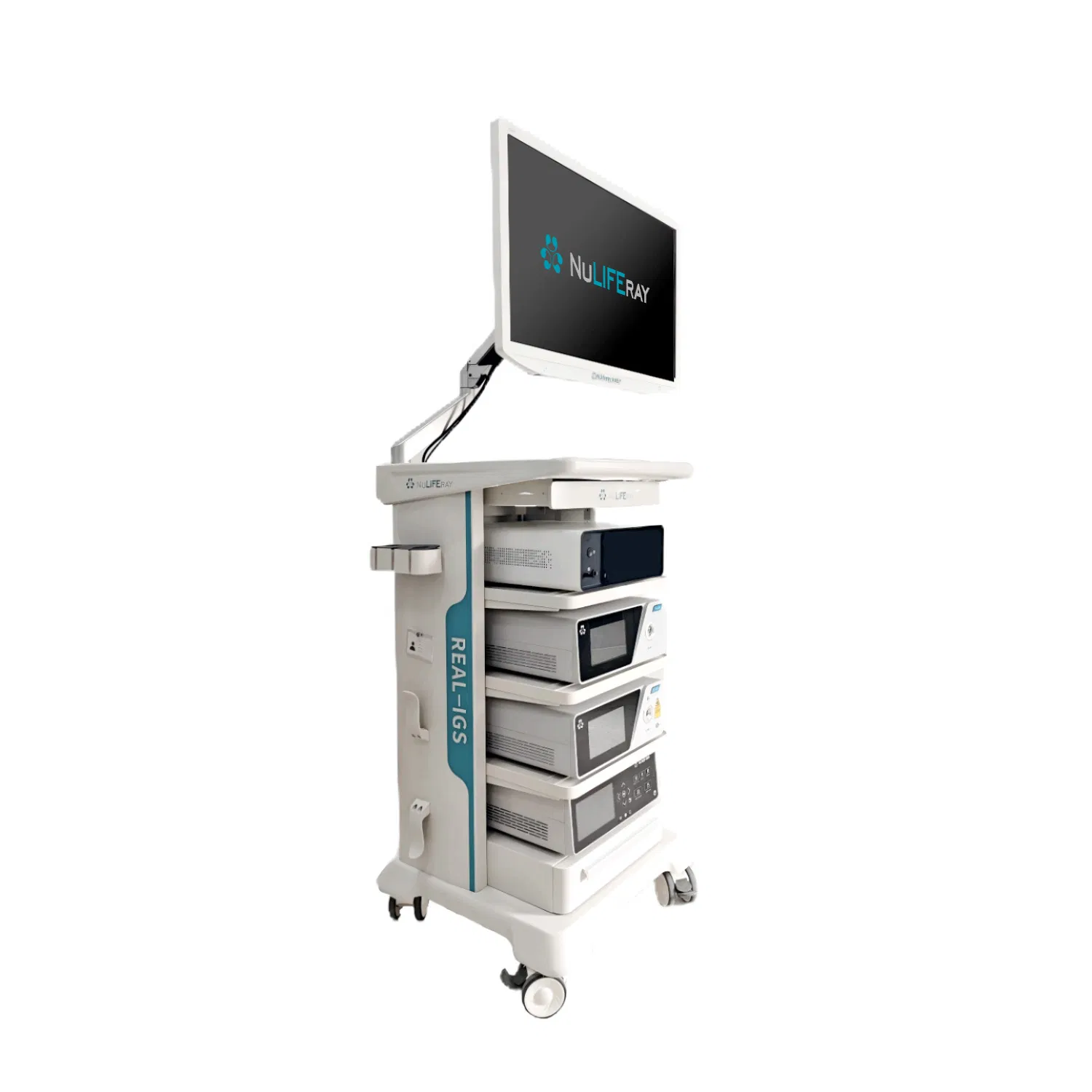

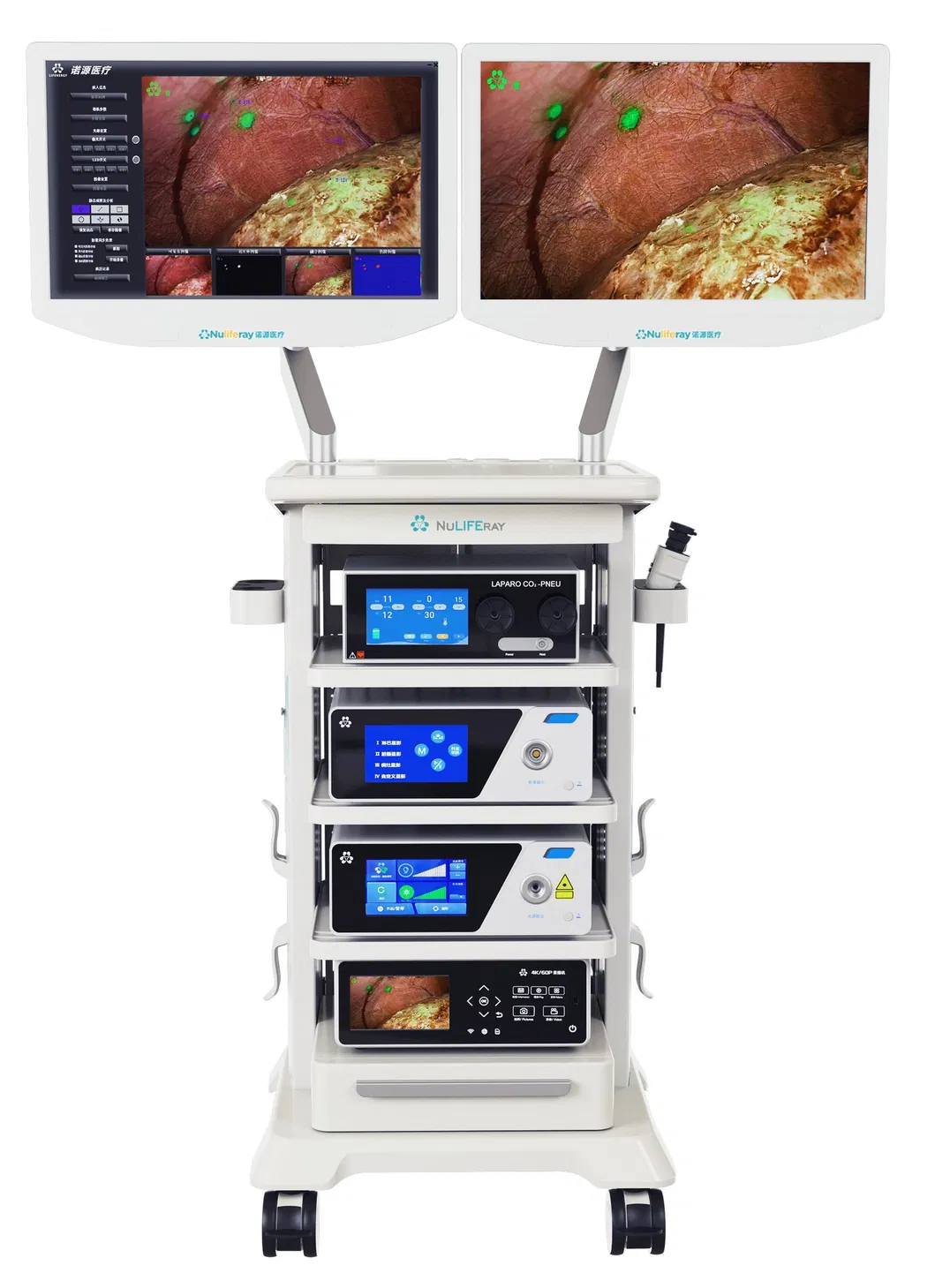

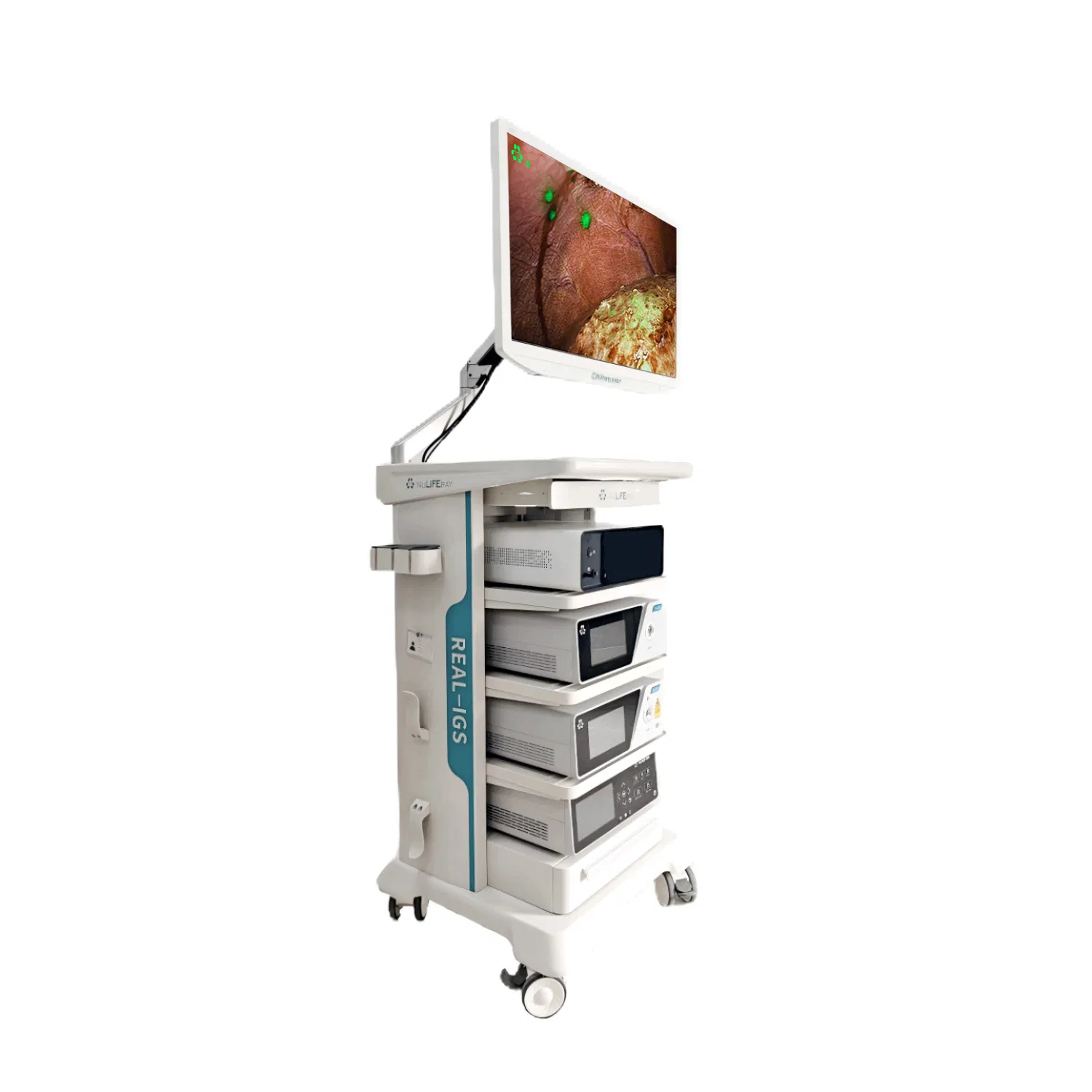

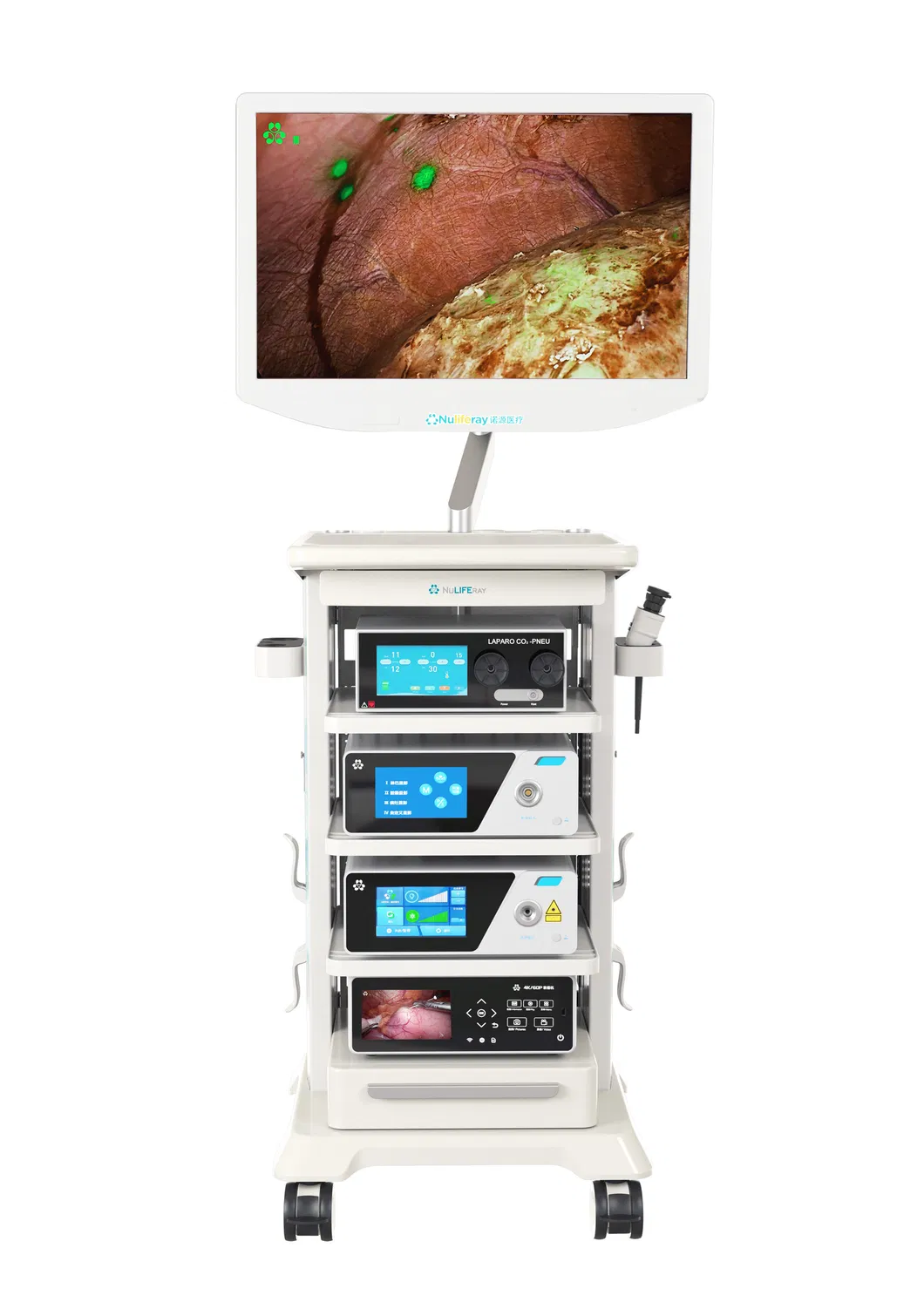

The 4K endoscopic fluorescence imaging system functions as both a high-definition white light endoscope and an ICG fluorescent tracer system. It provides one-click selection for color images, black and white fluorescent images, and color fluorescent images. Designed for minimally invasive surgery, it supports lymphatic, organ, and lesion imaging modes. The system enables real-time observation of blood flow, anatomical structures, and lymphatic drainage with spatial resolution significantly superior to traditional methods.
| Laser source pulse width | N/A (continuous laser emission) |
| Chip structure | 4CMOS |
| Handle function keys | 4 remote control buttons |
| Optical adapter | Fixed focus/zoom |
| Monitor size | 32 inches and above |
| Monitor resolution | ≥3840×2160P/4096×2160P |
| Pixels and frame rate | ≥8.29 million pixels, 60 FPS |
| Endoscope | 0° or 30° field of view, 5mm or 10mm |

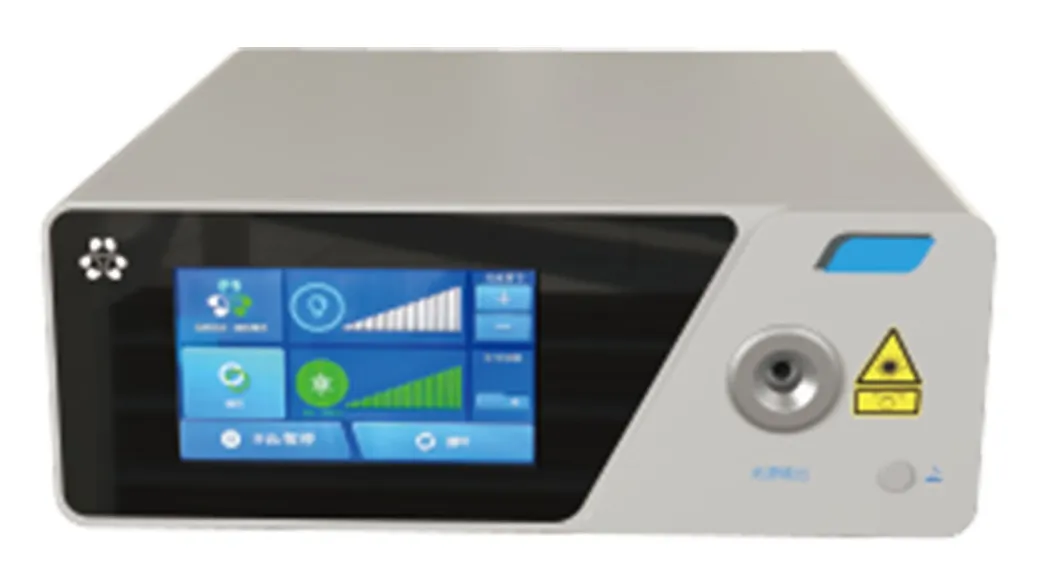

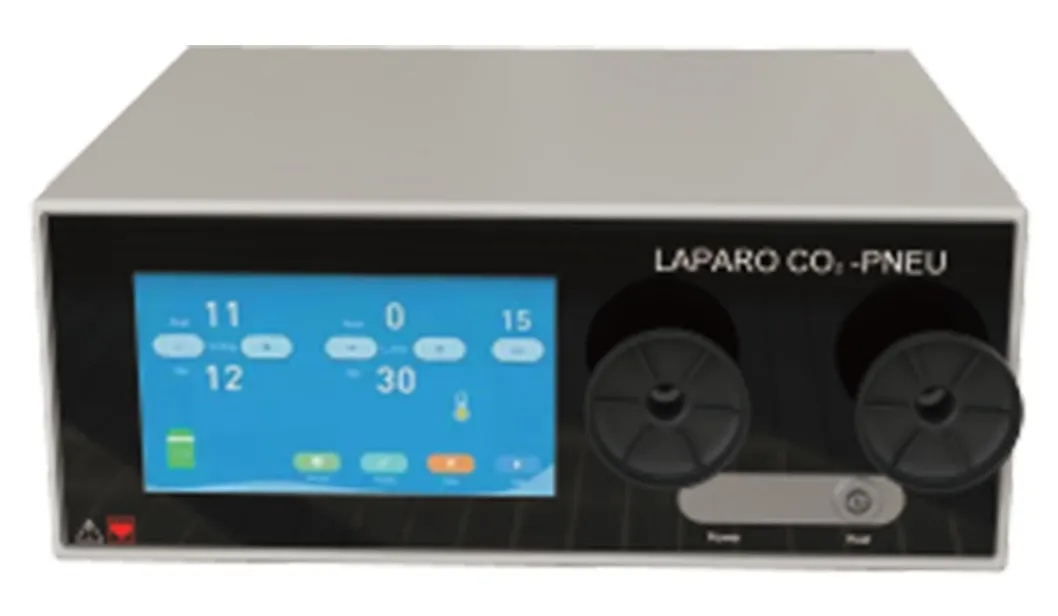

P1: Independent dual light source | P2: Ultra HD Camera System | P3: Fully automatic insufflation system

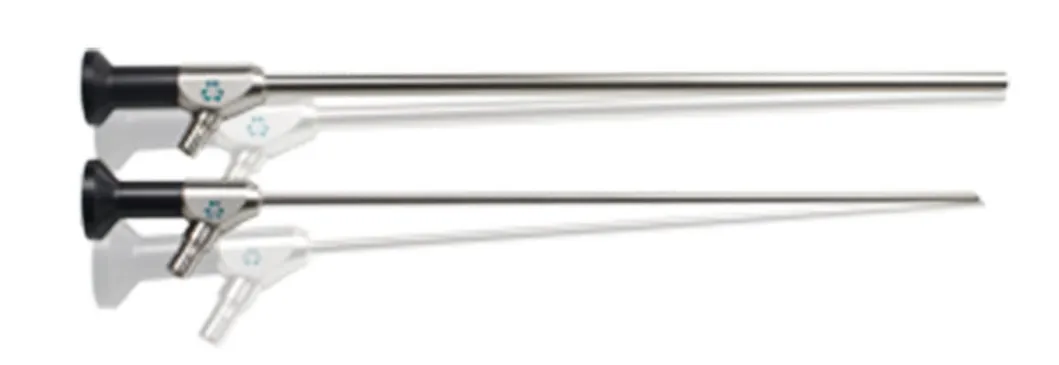

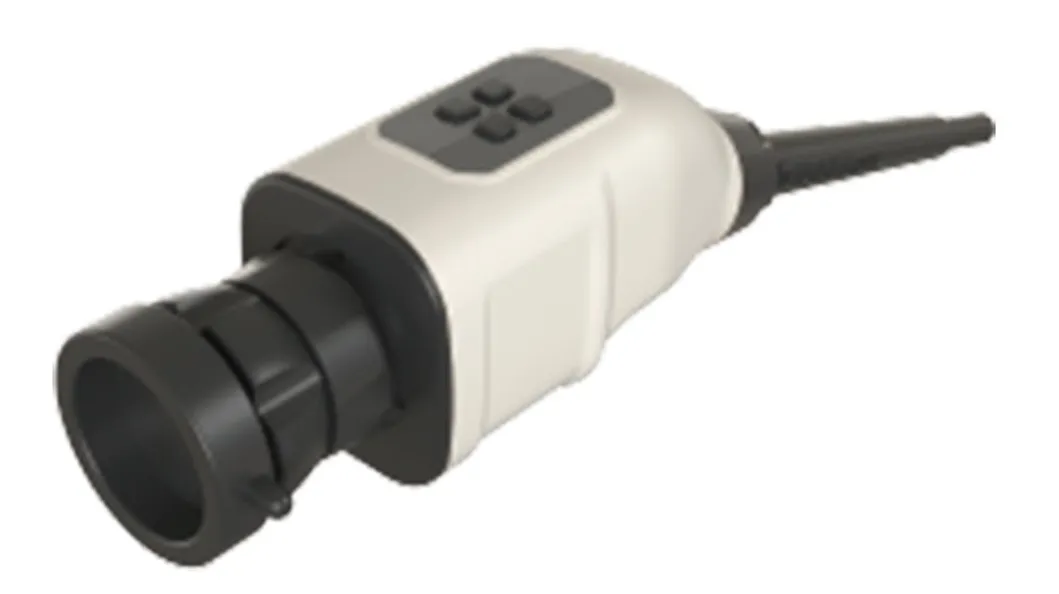

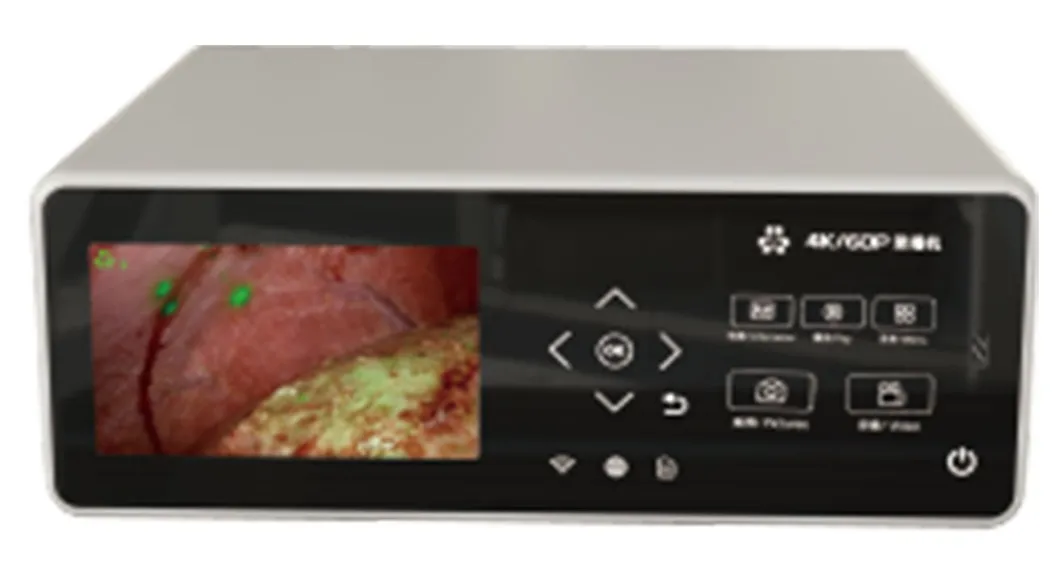

P4: True 4K recording and broadcasting system | P5: 4CMOS 4K handheld camera | P6: Antireflective fluorescent endoscope

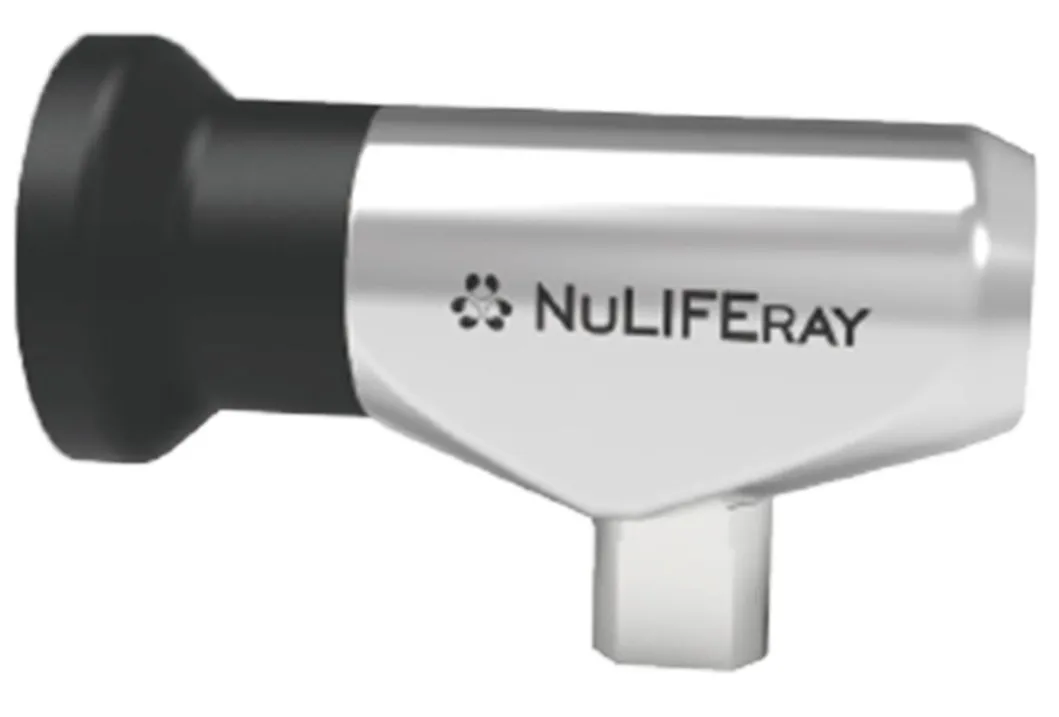

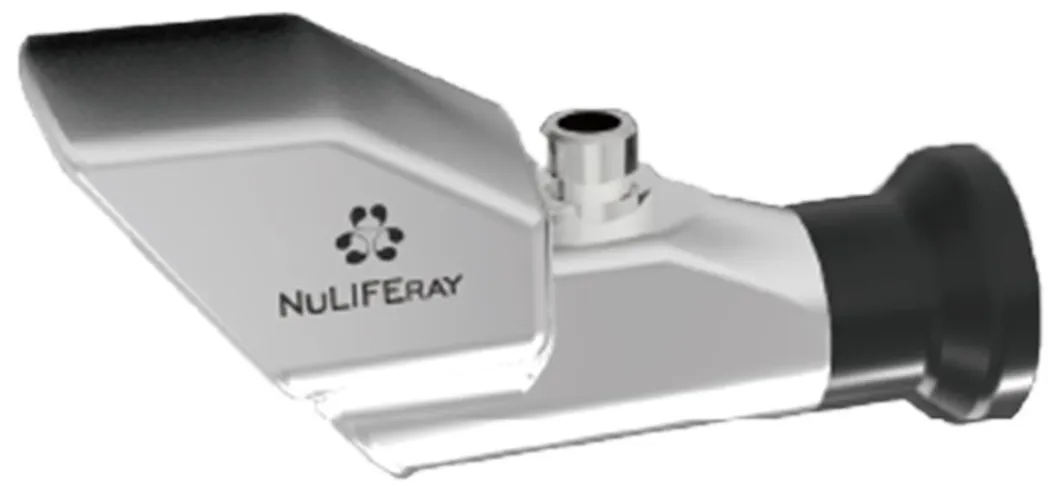

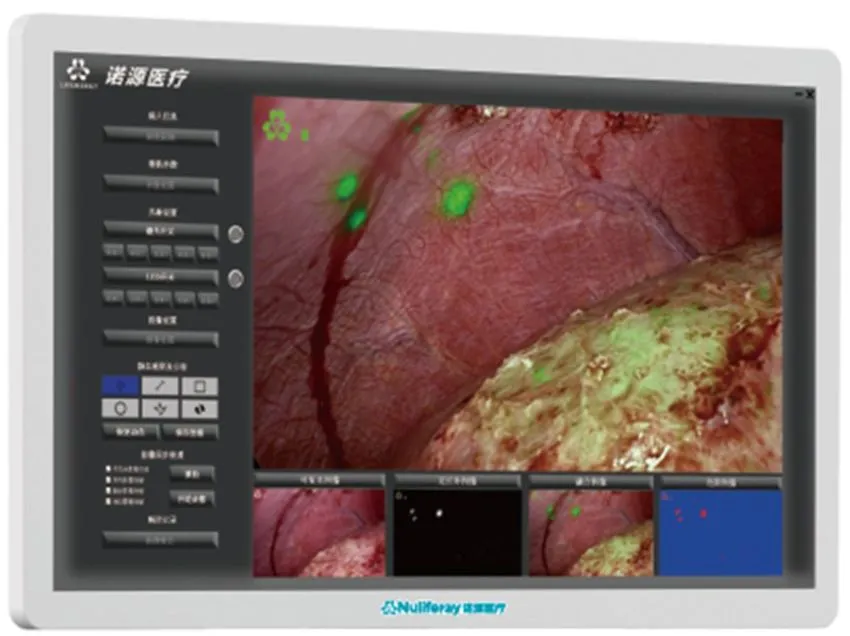

P7: Embedded software for workstation | P8: 0° High-resolution fluorescence objective | P9: 28° High-resolution fluorescence objective
Used in conjunction with medical endoscopes and the fluorescence dye indocyanine green (ICG) to provide illumination and real-time visible light imaging and near-infrared fluorescence imaging in minimally invasive endoscopic surgery.
Our research and development focus on high-end medical devices, molecular fluorescence imaging, and core components like CMOS camera modules. Our products are utilized in over 500 large hospitals across China and in more than 10 overseas countries through strategic international partnerships.
